WB2072-0A
Bluetooth® Low Energy Wireless MCU Module
w/o Antenna ST BlueNRG-355AC Solution

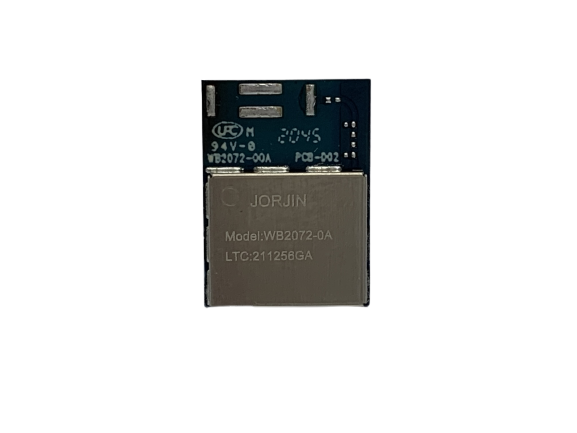

WB2072-0A
The certified WB2072-0A module from JORJIN is a wireless MCU module targeting Bluetooth 5.2 low energy applications. This module is based on ST BlueNRG-355AC wireless MCU QFN 32 package chip.
The module is a cost effective, ultralow power, 2.4 GHz RF devices. Very low active RF and MCU current and low power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy harvesting applications.
Upload Technical Information
- 4.1 Module data sheet
- 4.2 EVB quick start guide
- 4.3 EVB user guide
Key Features
High performance and ultra low power Cortex M0+ 32 bit , 64 MHz
256 KB Flash, 64 KB SRAM, 1 KB OTP, 7KB MPU
Operating supply voltage: from 1.7 to 3.6 V
Dynamic current consumption: 18 μA/MHz
Extensive peripheral set: 2 x SPI / I2S, 1x SPI, 2 x I²C, 1 x USART, 1 x UART, 6 x PWM, 1 x PDM, 1 x 12 bit ADC
Embedded UART bootloader
Enhanced security mechanisms such as:
– Flash read/write protection
– SWD access can be disabled
– Secure bootloader
LGA 42pins package.
Dimension 15 mm(L) x 11 mm(W) x 2.6 mm(H)
Temperature range: -40° to +85°C
Downloads
WB2072-0A
pdf
WB2072E00A-UG-D01_20201103
Size : 2.22 mb
Hits : 749
Date added : 21 - 07 - 2021
Date modified : 21 - 07 - 2021
pdf
WB2072E00A-QSG-D01_20201113
Size : 1.27 mb
Hits : 324
Date added : 21 - 07 - 2021
Date modified : 21 - 07 - 2021
pdf
WB2072-0A-DTS-R01_20210713
Size : 2.77 mb
Hits : 421
Date added : 21 - 07 - 2021
Date modified : 21 - 07 - 2021
