mmWave Radar

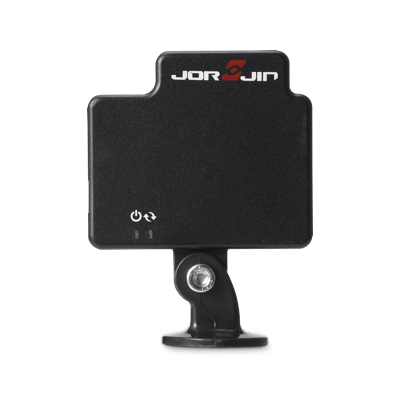

MT5A61E01K is a 77G mmWave sensor application kit which combines TI’s industrial IWR1642 single-chip radar technology with Jorjin’s advanced antenna design capabilities. The sensor provides a good solution for various industrial applications, designed for ultra-accuracy, self-monitoring, and low-power consumption.
MT5A61E01K operates on a specialized band, which is 77 to 81GHz. It includes an ARM Cortex-R4F processor and a 2TX 4RX antenna system with specific SDK to satisfy diverse applications, for areas such as environment monitoring, factory automation, facility inspection & maintenance, object or personnel detection, or personal health care.
Jorjin’s MT5A61E01K provides a full-featured evaluation kit for rapid application development, for building proof-of-concept prototypes. Jorjin also has a 60GHz ISM band mmWave radar, which is a competitive design more geared towards indoor applications.
Key Features
Non-contact measurement
Built-in antennas
FMCW
Sensing for range, velocity & angle
Higher accuracy, higher resolution
Able to function in diverse environments
Good for metal & liquid detection
Penetrates dry walls, cloth & plastic
(non-open housing designs)
Specification
Coverage
MT5A61E01K：77-81 GHz Tank level detection
MT5B9SE01K：60-64 GHz ISM band
Core Chip
MT5A61E01K：TI, IWR1642
MT5B9SE01K：TI, IWR6843
Dimension
78mm x 64mm x 23.5mm
Operating Temperature
-40 ˚C ~85˚C (-40°F~185°F)
Radio Control System
ARM Cortex-R4F
Signal Processing
FMCW at C674x DSP
On Chip Memory
MT5A61E01K：1.5MB
MT5B9SE01K：1.75MB
Power Supply
5V / 2A
Antenna
(Transmit / Receive Channels)
MT5A61E01K：2Tx / 4Rx
MT5B9SE01K：3Tx / 4Rx
Data Transfer
Micro USB
* MT5B9SE01K available at 2019 Q3.
* Specifications subject to change without notice
Downloads
mmWave
| Title | Version | Size | Download |
|---|---|---|---|
| MT5B9SE01K-UG-R01_210303 | 983.83 kb | Download Preview | |
| MT5A61E01K-UG-R02_210303 | 1.03 mb | Download Preview | |
| 77Ghz-MT5A61-01-DTS-D01_190322-1 | 943.10 kb | Download Preview | |
| 60Ghz-MT5B9S-01-DTS-D01_191126 | 1.19 mb | Download Preview |
