WG7831-D0
IEEE 802.11b,g,n
+ BT 5.1
WG7831-D0

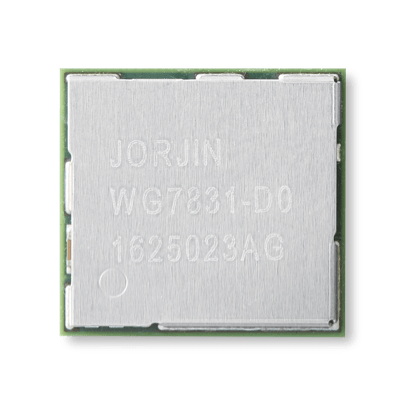

The Jorjin WG7831-D0 is a low cost 2.4GHz WLAN + Bluetooth system in package (SiP) module based on the WL1831 from Texas Instruments. It contains a crystal, power amplifier, Tx filter and Tx/Rx switch as well as the necessary passive components to fully implement the 802.11b,g,n WiFi & Bluetooth 5.1 functions.
The WG7831-D0 WLAN is connected to the host processor via a 1.8V SDIO interface, and the Bluetooth is connected via a UART. Linux and Android drivers are provided for a wide range of application processors, with WinCE and Windows Mobile drivers available from our partner network.
Jorjin can supply a suitable 2.4GHz chip antenna for the WG7831-D0 and can provide complete design services including a full design review and FCC/CE certification.
Key Features
2.4GHz WLAN (b,g,n), BT 5.1
Integrated crystal, Tx/Rx switch and bandpass filter
WLAN / Bluetooth coexistance circuitry
Dimension 12.8mm(L) x 12mm(W) x 1.7mm(H)
Based on TI Wilink8 45-nm CMOS technology
Seamless integration with TI Sitara and other application processors
Pin compatible with Jorjin WG7801-D0 WiFi only solution
Operating temperature: -20°C ~ 75°C
Supplied on 1800 pieces tape and reel
Specification
Chipset
TI WL1831
WLAN
IEEE 802.11 b/g/n & BT 5.1
Certification
FCC, CE, IC
Dimension
12.8 x 12.0 x 1.63 mm
Operating Temperature
-20°C ~ 75°C
Interface
WLAN HS SDIO, Over UART, BT PCM
Downloads
WG7831-D0
| Title | Version | Size | Download |
|---|---|---|---|
| WG78xx-module-Porting-Guide-For-iMX8-and-Android-8 | 1.06 mb | Download Preview | |
| WG7831-D0-DTS-R07_230331 | 1.61 mb | Download Preview | |
| WG7831-D0_module-Porting-Guide-For-Renesas-RZG1M-and-linux3.10 | 1.08 mb | Download Preview | |
| WG7831-D0_module-Porting-Guide-For-iMX7-and-Linux-kernel-4.1.15 | 589.11 kb | Download Preview | |
| WG7831-D0_module-Porting-Guide-For-iMX6-and-Android-6 | 374.58 kb | Download Preview | |
| WG7831-D0_HW-Platform-and-OS-Support-Note-For-WG78xx-module | 343.10 kb | Download Preview | |
| WG7831-D0_DOC | 680.01 kb | Download Preview |
